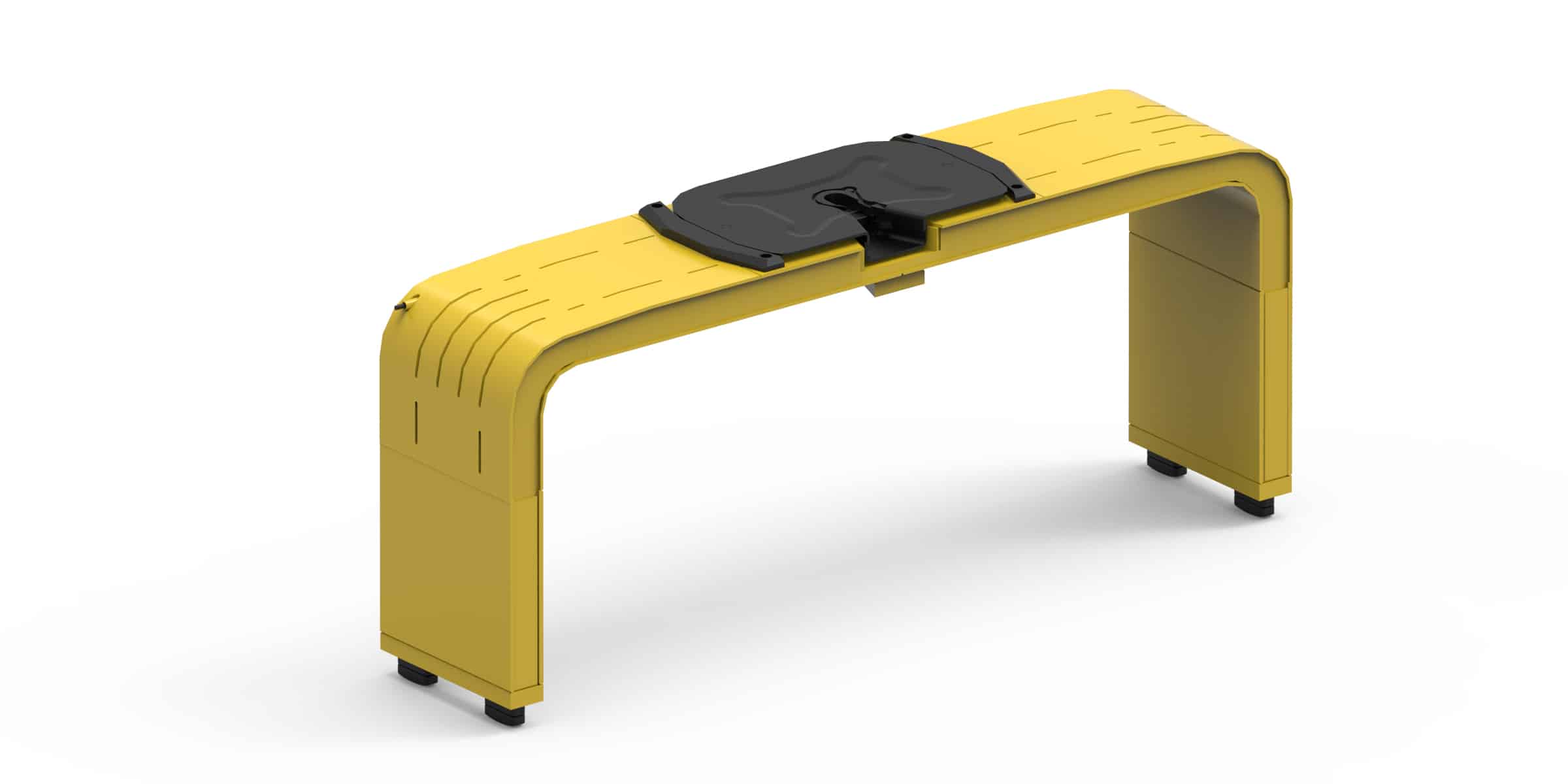

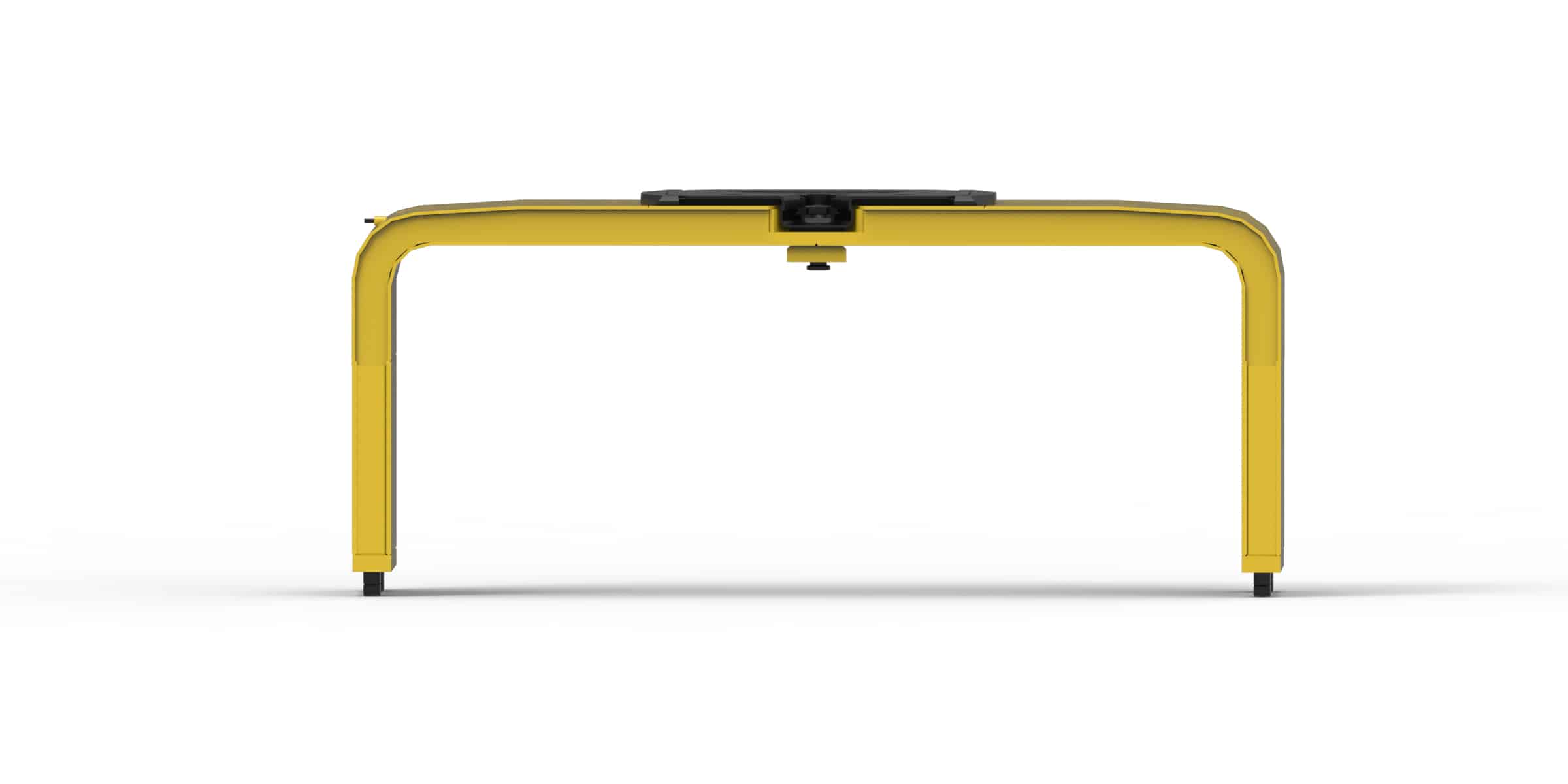

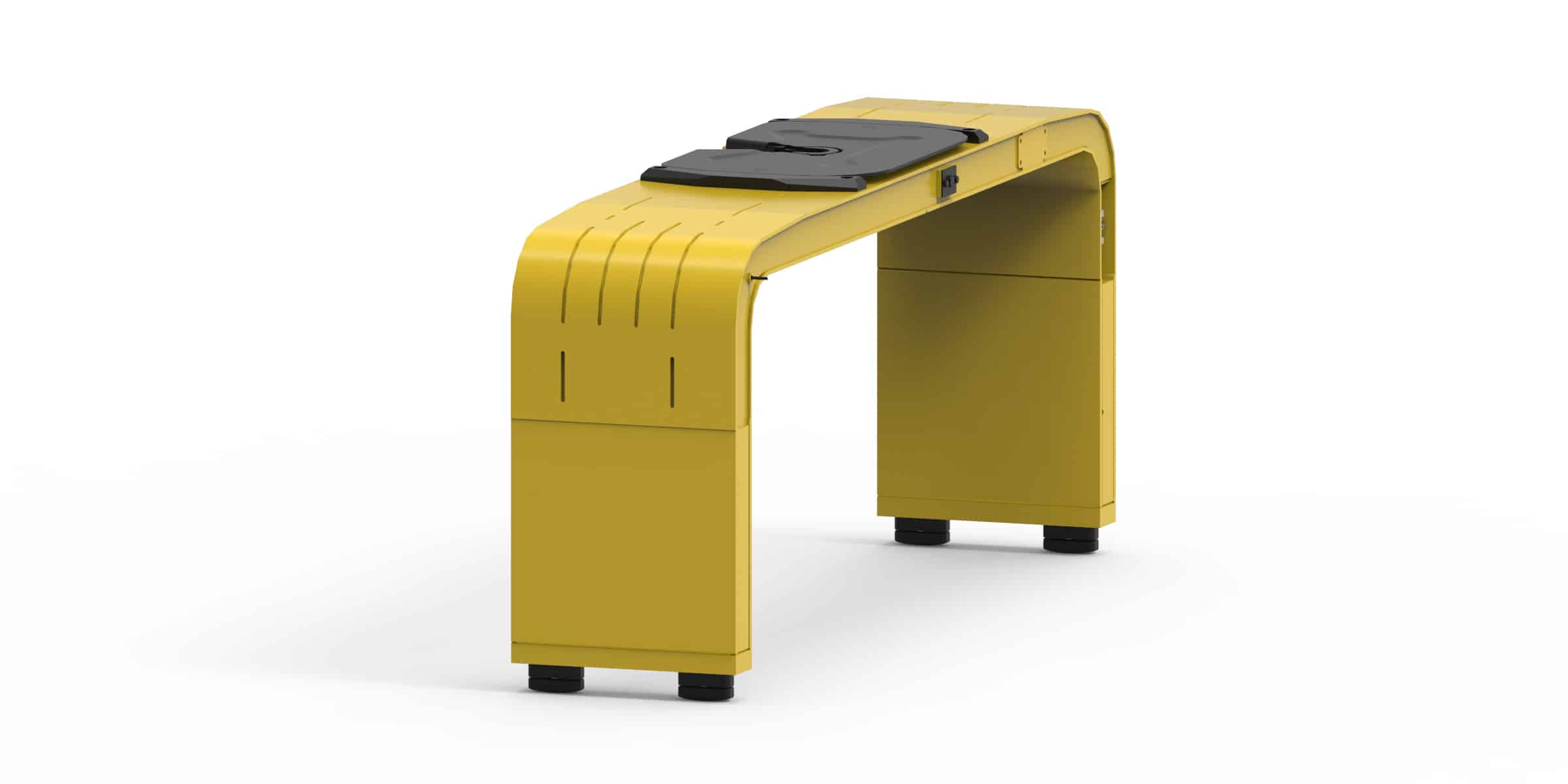

SAT Trestle

The SAT Trestle is engineered to ensure the safe and efficient transport of trailers at sea, as well as secure handling during stevedoring operations. Designed for heavy-duty maritime environments, it provides maximum stability, reliability, and protection for trailers during vessel loading, unloading, and sea transport.

Specifications

The SAT Trestle is a dedicated support system engineered for the safe transport of trailers at sea and for efficient stevedoring operations. Designed for demanding maritime conditions, it eliminates the need for lashing and significantly improves operational efficiency.


Core Technical Details

•   Support Purpose: Ensures safe and stable trailer transport on vessels
•   Operation: Controlled via hydraulic and pneumatic connecting handles
•   Connection System: The trestle’s kingpin connects directly to the tractor’s 5th wheel
•   Compatibility: Suitable for ships equipped with deck holes for SAT systems
•   Lashing Requirement: No lashing needed under any sea conditions
•   Benefit for Operations: Reduces heavy chain handling and increases ship turnaround speed
•   Typical Capacity: Up to 18 tons

‹
›

Features

•   Low maintenance design for long-term reliability
•   Easy and safe to operate, even in busy port environments
•   Time and cost savings through simplified securing processes
•   Works without lashing in all conditions
•   Optional equipment available upon request
•   Increases safety during sea transport
•   Enhances efficiency during stevedoring operations
