Flat Loader

DOWNLOAD PDF

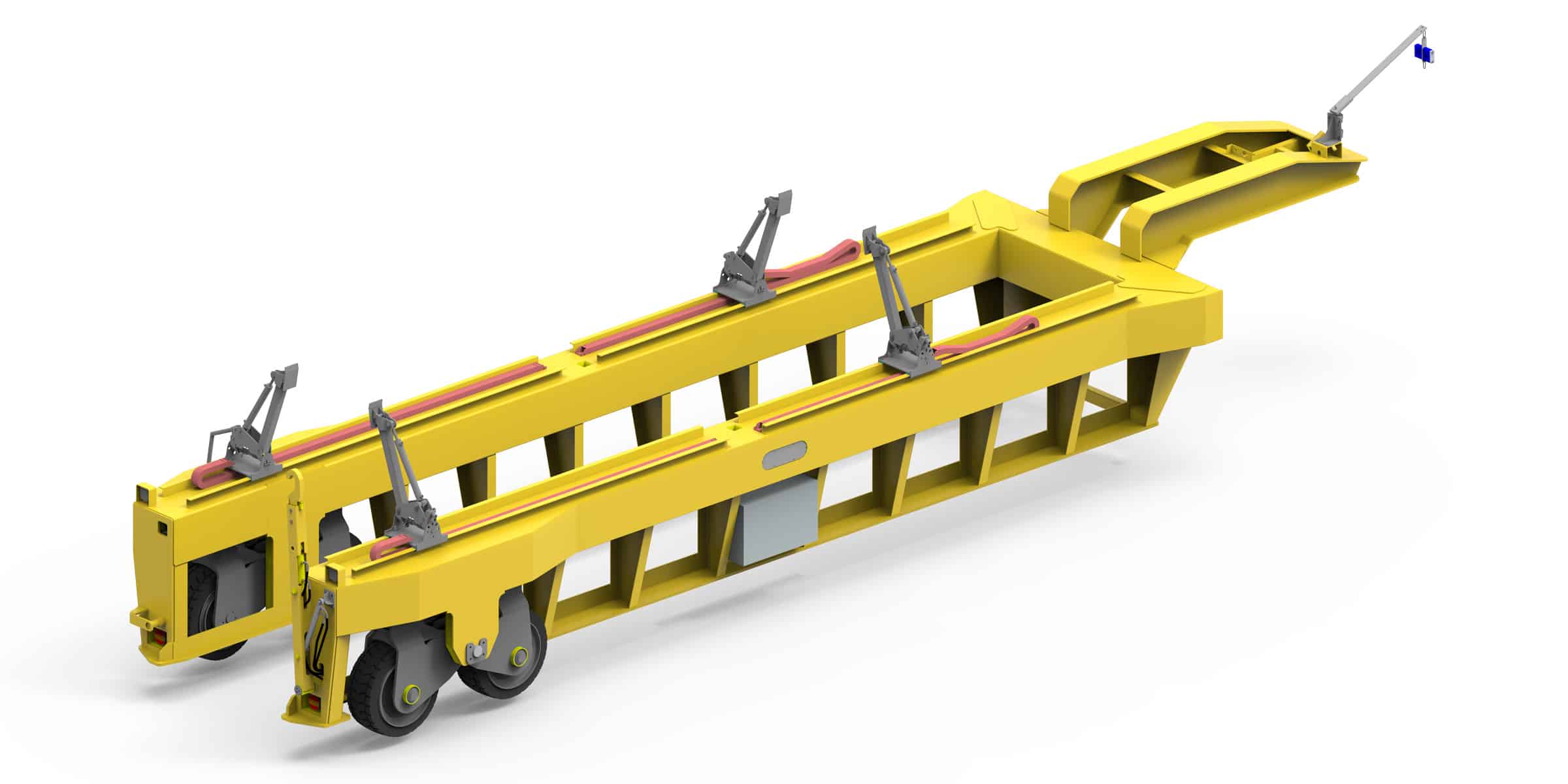

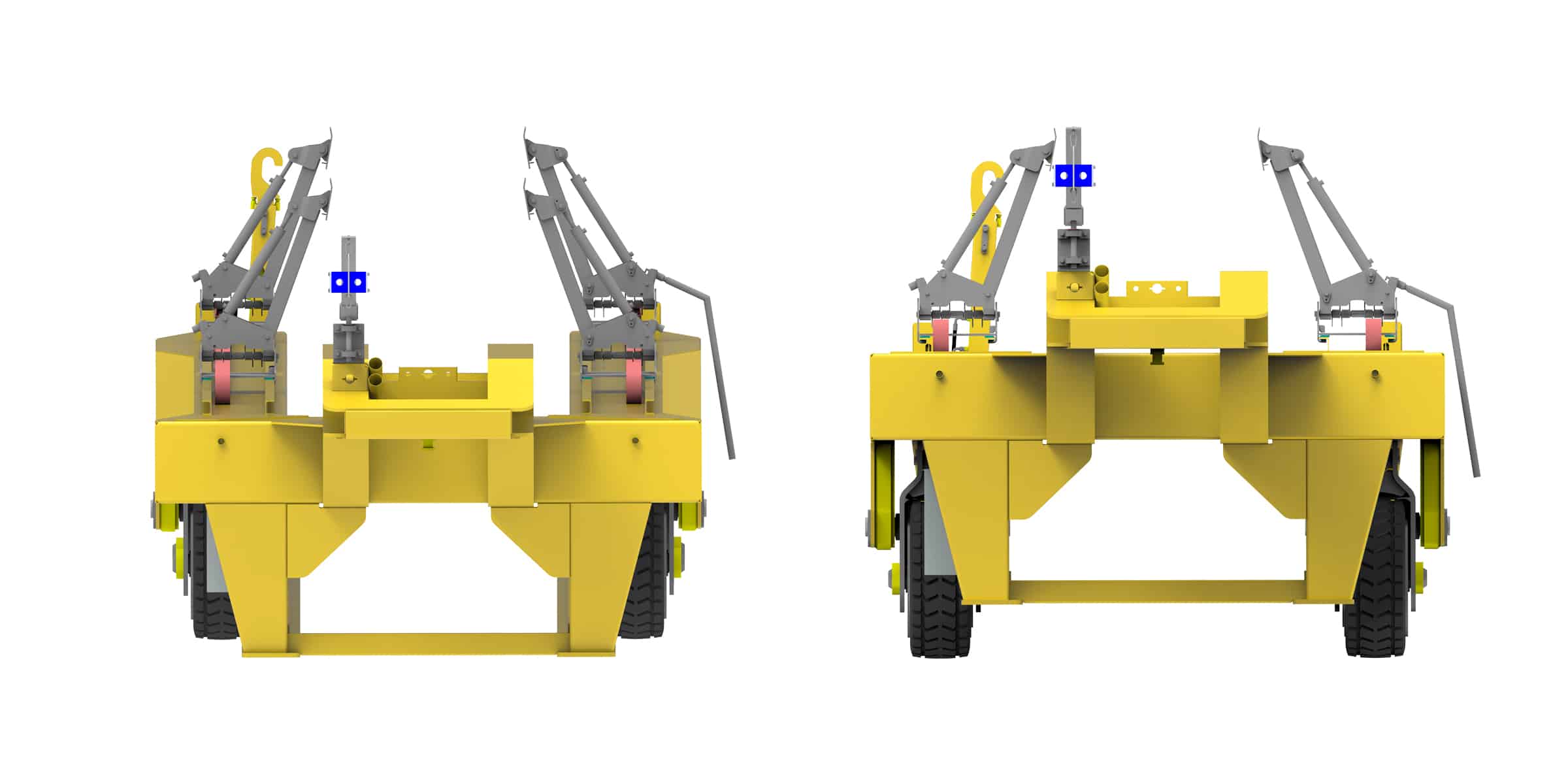

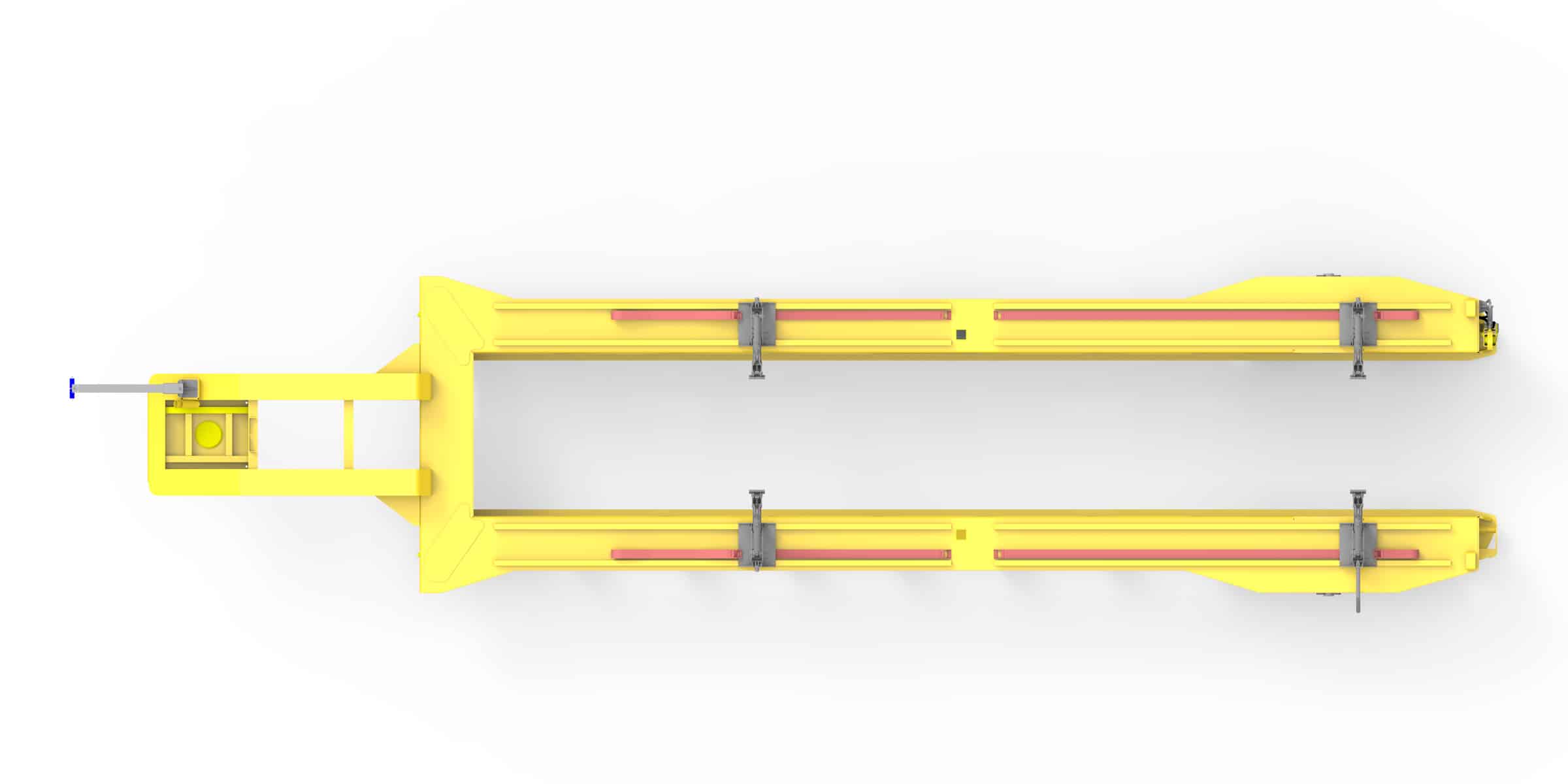

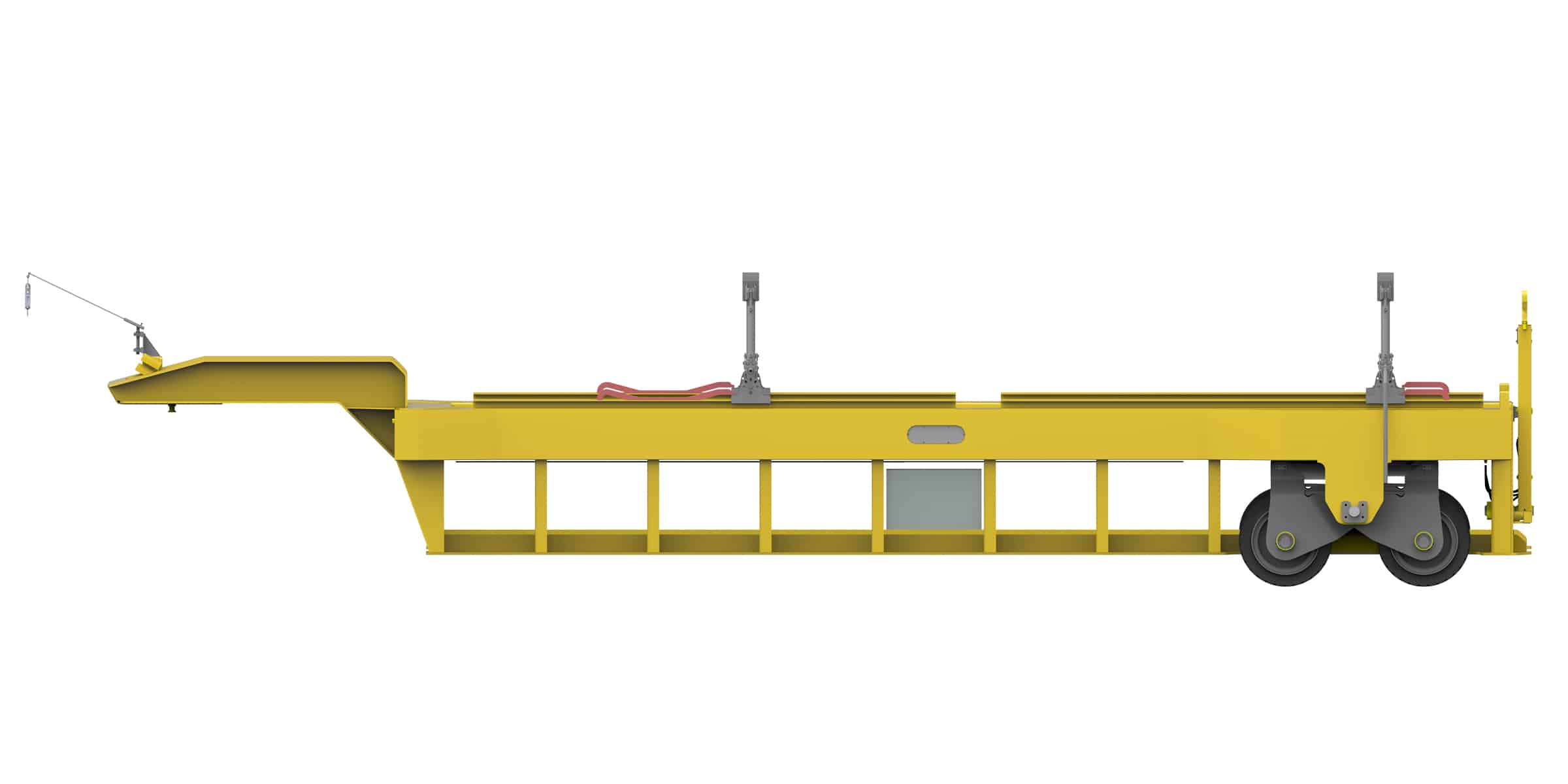

The Flat Loader is a cost-efficient solution to handle and transport concrete elements on flats between the production
line, storage area and goods out.
It is designed from the customers demand to be durable in industrial environments and requires minimum maintenance compared to the road trailers. The Flat Loader can be operated by one operator and a terminal tractor.

The Flat Loader is a practical and cost-efficient solution designed for the safe and efficient handling of concrete elements on flats. It seamlessly connects the production line, storage area, and goods-out logistics, ensuring smooth and continuous internal transport.

Developed to meet the real needs of industrial environments, the Flat Loader is engineered for maximum durability, low maintenance, and optimal workflow efficiency. Compared to traditional road trailers, it requires significantly less upkeep, reducing operational downtime and long-term costs.

The system is simple to operate and can be managed efficiently by one operator and a terminal tractor, making it an ideal choice for facilities looking to streamline handling operations without compromising safety or performance.

Explore the full range of capabilities of the Flat Loader — engineered specifically for the demands of the precast concrete industry. From smooth, seamless functionality to outstanding maneuverability on uneven terrain, the Flat Loader proves itself as a versatile, durable, and highly reliable transport solution.

Time is money — and the Flat Loader delivers both speed and convenience. With fully automated controls operated directly from the cabin, there’s no need to step out to lift, lower, or secure loads. This boosts safety and dramatically increases efficiency.

See how the Flat Loader outperforms traditional machines with its speed, simplicity, and unmatched ease of use. Watch now!



Operation

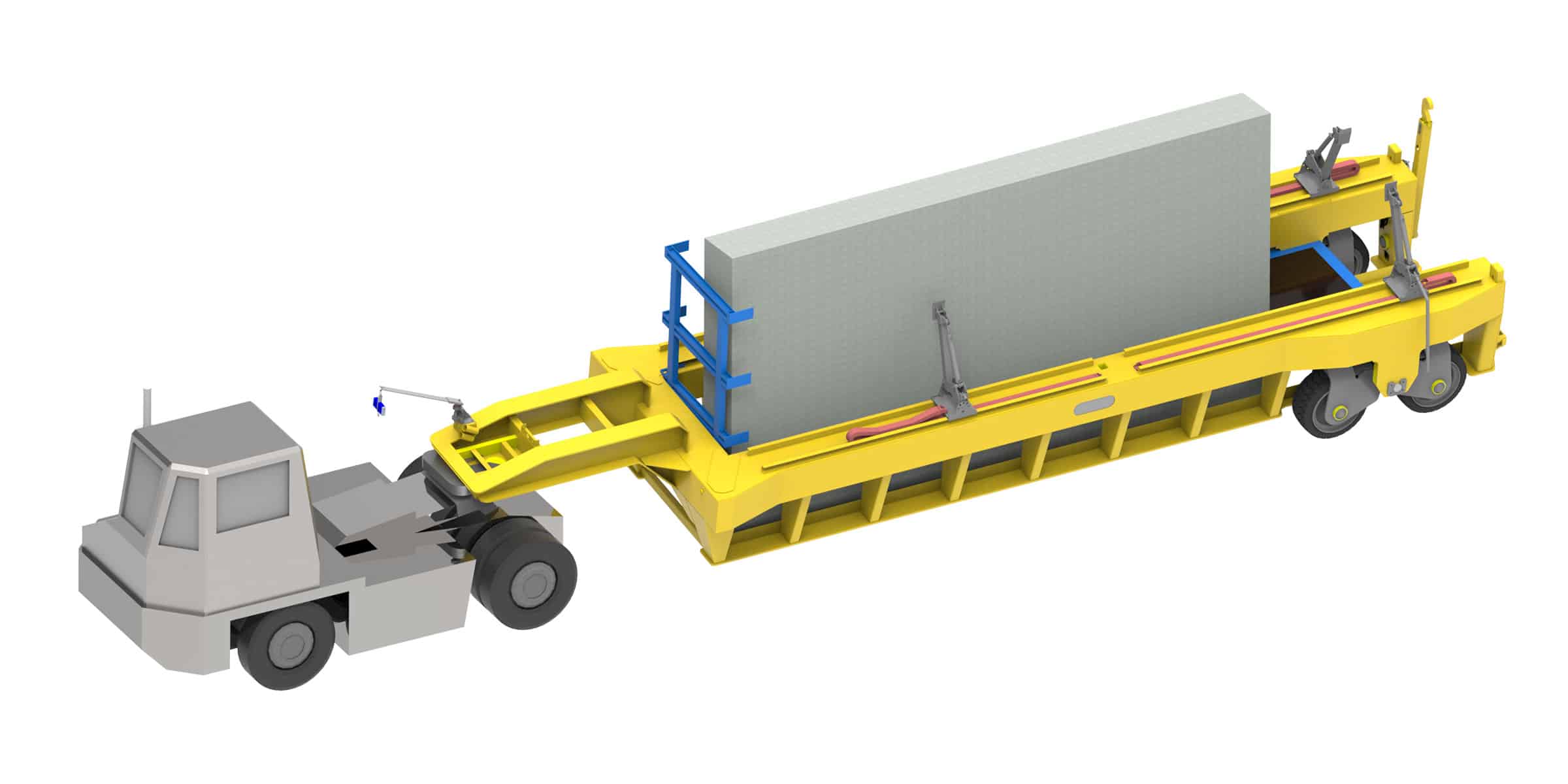

Operated by tractor and one operator
Remote to release & part a pallet from tractor cabin.
Hydraulic safety beam
Rear view camera
Monitor with camera view (optional)
LED rear and brake light combined with turning signals
LED working lights
Reversing alarm
Emergency lowering
Parked on Hardox slide


Technical Details

Load:  34.000 kg
Weight:  12.000 kg
Driving speed (loaded/empty):  10/25 km/h
Max tug master angle:  60°
Lifting height:  345 mm
Super elastic tires:  RES660xt 355/65-15
Wheel capacity:  7800 kg
Operation hydraulic pressure:  210 bar
Max hydraulic flow:  120 l/min
Operation voltage: 24V
