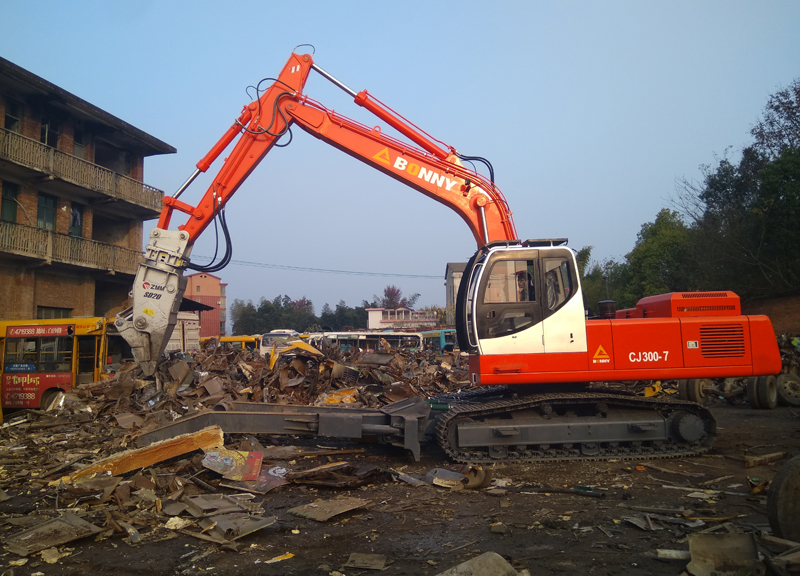

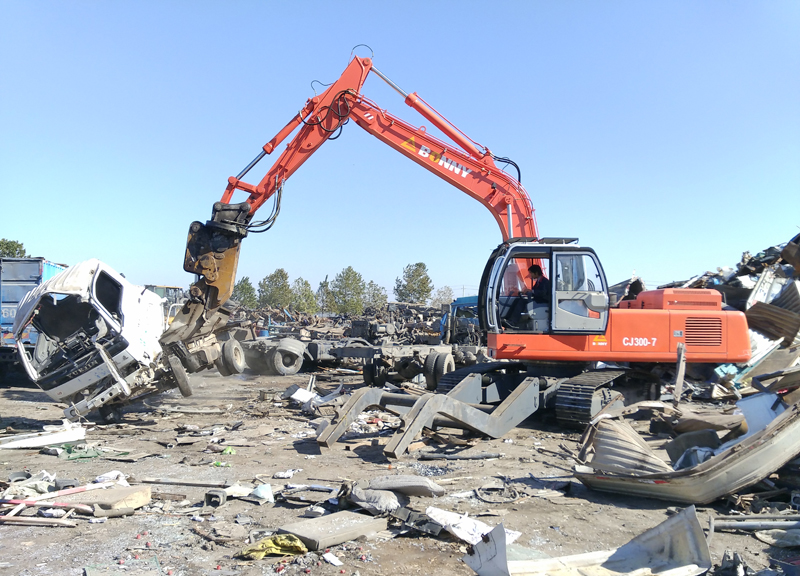

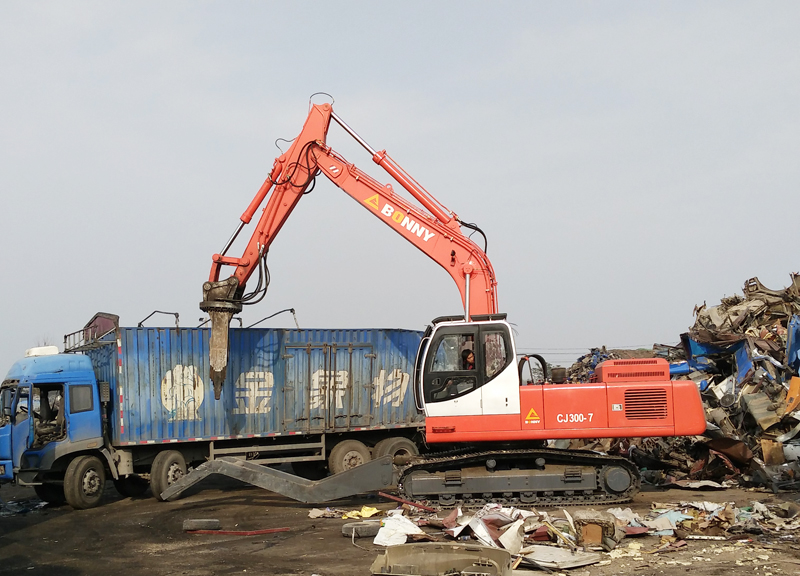

Diesel-powered dismantler for scrapped vehicle, can be used to disassemble waste vehicles; cut the scrapped steel in the yard of steel mills, has following characteristics and advantages:
● The movement is flexible and stability at working, well adaption for working environments.
● It can be save labor cost effectively, increase dismantling speed and improve the working efficiency greatly.
● There is no electric-gas welding, no flame that can enormously boost the safety for operation.
● Adopt the the unique hydraulic system for the vehicle-dismantler which can be implemented the hydraulic shears at precise and micro movement that lead work to be stable and reliable.
● Adopt the unique undercarriage for vehicle-dismantler, pressing frame is adopted inserting and then welding model with high strength and well stability.
● The fixed rising cab and hydraulic elevating cab can be separately selected base on the actual requirements at working sites to guarantee the operators will have excellent view.
|
Item |
Unit |
Data |
|
Machine weight |
t |
31 |
|
Rated power/ speed |
kW/rpm |
169/2000 |
|
Capacity of fuel oil tank |
L |
325 |
|
Max. flow |
L/min |
2×224 |
|
Max. operation pressure |
MPa |
30 |
|
Control type |
Hyd. pilot control |
|
|
Capacity of hyd. oil tank |
L |
276 |
|
Working attachment |
Data |
|
|
Boom length |
mm |
5850 |
|
Stick length |
mm |
2950 |
|
Max. shearing reach |
mm |
11171 |
|
Max. shearing height |
mm |
11029 |
|
Front pressing frame height |
mm |
2106 |
