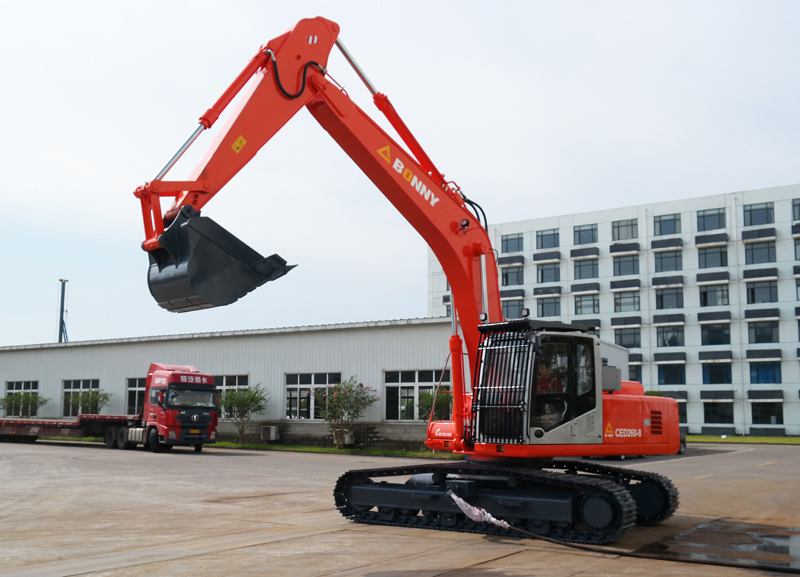

CED260-9 (26 Ton Electric Hydraulic Excavator)

The CED260-9 electric hydraulic excavator is engineered for modern, eco-efficient operations, offering powerful performance with minimal environmental impact. Equipped with a medium-voltage three-phase asynchronous motor, this model provides zero emissions, no pollution, and remarkably low noise levels, making it ideal for indoor work, urban environments, and areas with strict environmental regulations. Its electric drive system also significantly reduces operating and maintenance costs, while ensuring excellent thermal stability and reliability in high-temperature working conditions.

1. CED260-9 electric hydraulic excavator configured with the medium voltage three-phase asynchronous motor, which has the unique advatages of zero emissions & no pollution, low noise, low operation & maintenance cost, good adaptability to high ambient temperature.

2. It is configured with the world famous brand hydraulic components. The main hydraulic components, such as pumps and valves, adopt international famous brands to ensure the high quality and high reliability of the machine. The hydraulic hose adopts the international famous brand, and its excellent performance guarantees the high reliability of machine.

‹

›

SPECIFICATIONS

No.	Item		Unit	Data
1	Machine weight		t	26.5
2	Bucket standard capacity		m3	1.2
3	Electromotor	Model		YE2-315S-4
		Rated power/speed	kW/rpm	110/1480
		Voltage	V	380
4	Hydraulic system	Max. operating pressure	MPa	32
		Max. flow rate	L/min	2×235
		Control type		Hyd. pilot control
		Hydraulic oil tank capacity	L	270
5	Performance data	Slewing speed	r/min	11.3
		Travel speed	km/h	3.1/5.5
		Max. traction force	kN	242
		Gradeability	%	70
		Ground pressure	MPa	0.066
6	Working data	Boom length	mm	5800
		Stick length	mm	2900
		Max. digging depth	mm	6694
		Max. digging reach	mm	10147
		Max. digging height	mm	9539
		Max. unloading height	mm	6730
		Max. digging force of stick	KN	110
		Max. breakout force of bucket	KN	150
