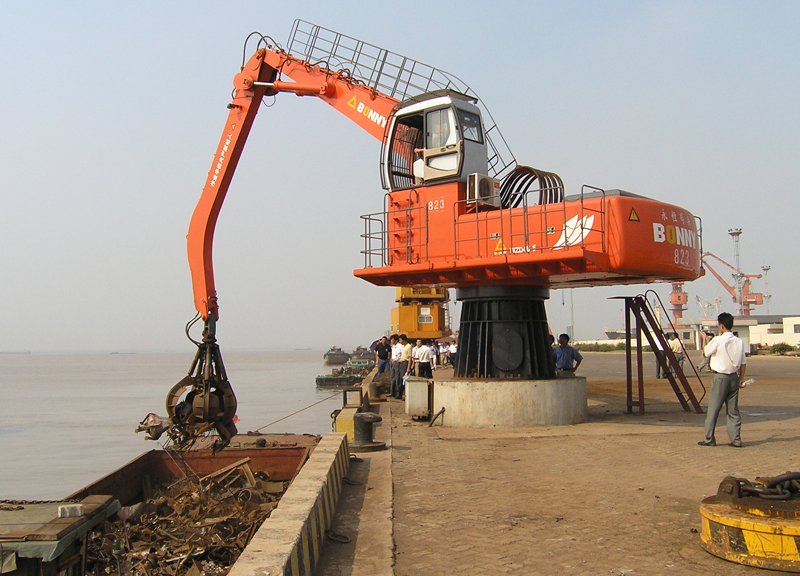

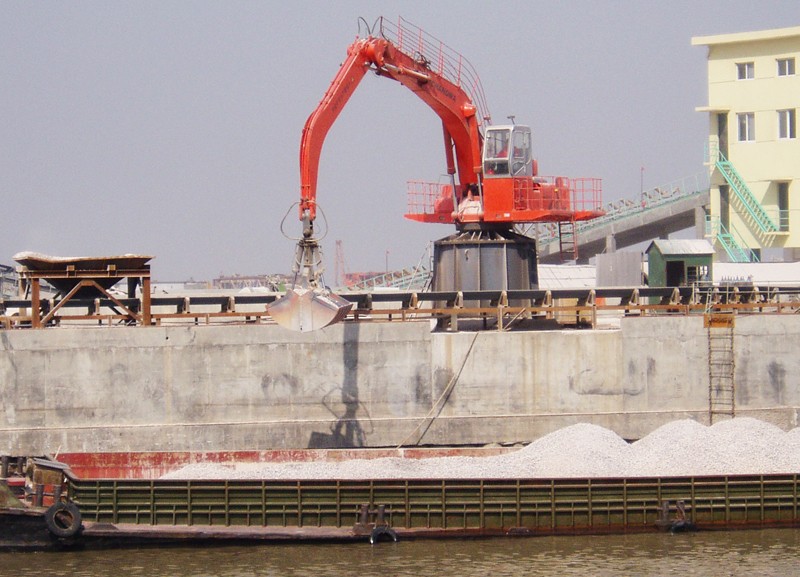

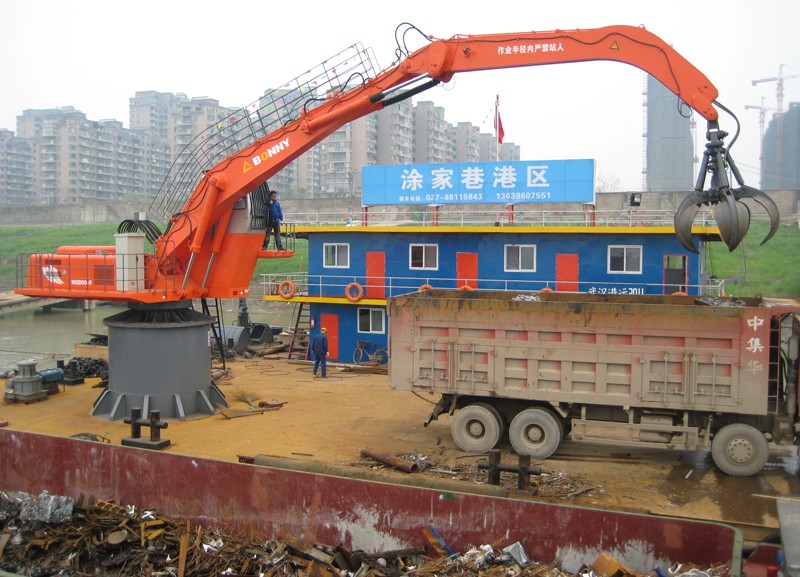

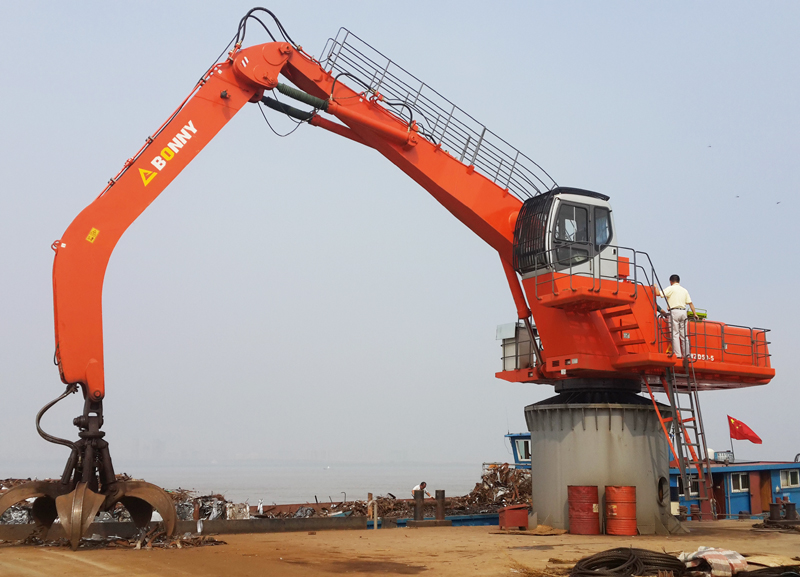

WZD50-9 (50 Ton-class Fixed Electric Hydraulic Material Handler)

Fixed electric hydraulic material handlers are specially designed and manufactured professional equipment for material handling, matching dedicated hydraulic system and dedicatd working equipment to adapt to the actual working conditions of the job site, with better operating stability, larger operating range, greater lifting capacity and higher productivity, rather than some manufacturers simply modified from the excavator, such as installing a grab or replacing the working equipment.

FEATURES

The following systems are standard configuration in fixed electric material handler:

● Rigid cab elevation,

● Automatic air conditioning system,

● Minimum 1.5m pylon and connecting fastener -the pylon height can be adjusted according to the site situation,

● Grab without 360° rotation,

● Boom damping system,

● Fan drive reversing function,

● Stairs on the left side of cab,

● Safety access and railing on both sides of the slewing platform,

● Windscreen cleaning system,

● Dry powder fire extinguisher,

● LED lights.

‹

›

The following optional systems can be selected individually or in combination as required:

○ Hydraulic lifting cab,

○ Air suspension seat,

○ Automatic central lubrication system,

○ Grab with 360° rotation,

○ Magnetic plate control system,

○ Hose rupture valves for boom cylinder,

○ Hose rupture valves for stick cylinder,

○ Four view camera system,

○ Low temperature treatment (winter package) and cab heater in cold areas,

○ Automatic fire monitoring and extinguishing system,

○ Automatic weighing system,

○ Spray system,

○ Electric refuelling pump,

○ Safety railing on the boom,

○ Safety railing with height of 1100mm on uppercarriage,

○ Double stairs on both sides of the slewing platform (+safety cage),

○ Custom colors, etc.

According to the operation needs to choose a variety of attachments:

● Orange peel grab,

● Clamshell grab,

● Timber grab,

● Sorting grab,

● Magnetic plate,

● Load hook, etc.

SPECIFICATIONS

No.	Item		Unit	Data
1	Machine weight		t	37
2	Electromotor	Power	kW	160
		Voltage/frequency		380V/50Hz
		Speed	r/min	1485
3	Hydraulic system	Max. flow rate	L/min	2×267
		Max. operating pressure	MPa	32
		Control type		Hyd. pilot control
		Hydraulic oil tank capacity	L	565
4	Slewing system	Max. slewing speed	r/min	7.3
4	Slewing system	Tail slewing radius	mm	3700 (Walking access not include)
5	Working data	Boom length	mm	9000
		Stick length	mm	6500
		Orange peel grab capacity	m³	1.0 (semi-closed, 5-tine)
		Steel pylon height	mm	1500
		Max. grabbing reach	mm	16472
		Max. grabbing height	mm	13800
		Max. grabbing depth	mm	7847

※

1. The products may be improved, if you need detailed, latest and accurate data, please contact the manufacturer or Dealer.

2. For fixed electric material handler, customized working equipments and steel pylon height are available based on site situation.
