FEATURES

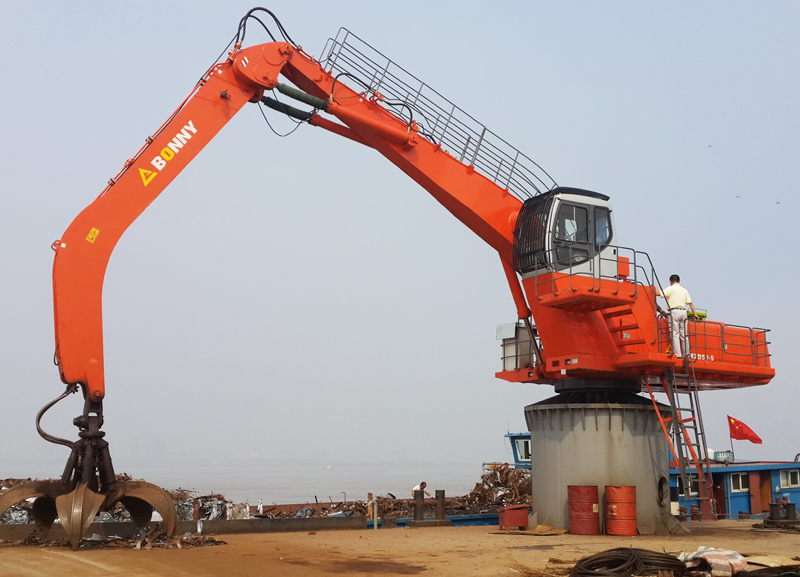

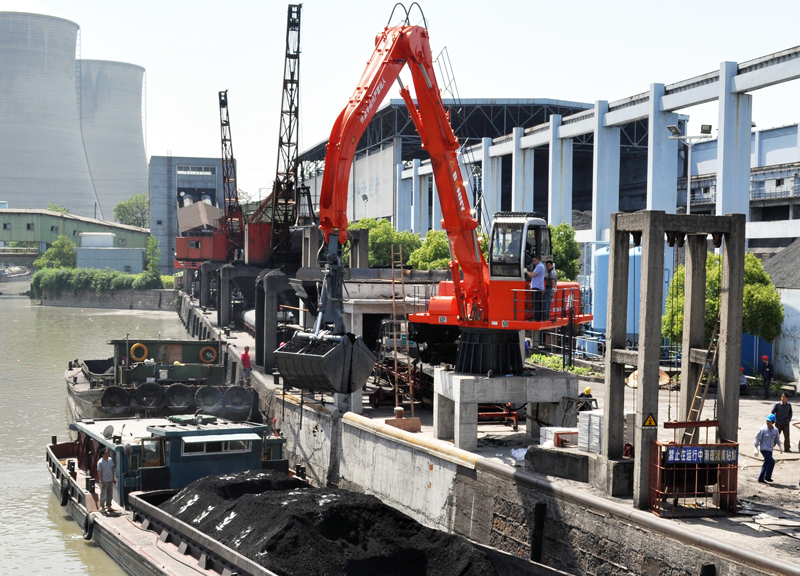

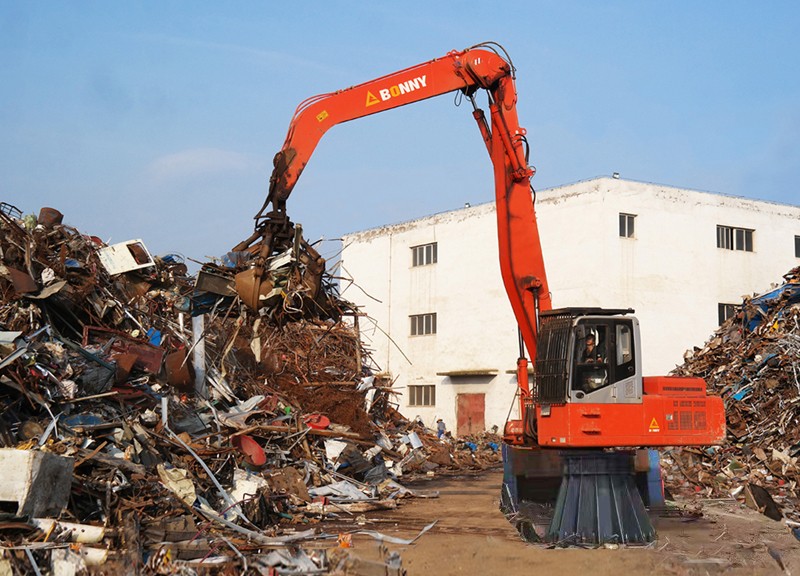

The following systems are standard configuration in fixed electric material handler:
● Rigid cab elevation,
● Automatic air conditioning system,
● Minimum 1.5m pylon and connecting fastener -the pylon height can be adjusted according to the site situation,
● Grab without 360° rotation,
● Boom damping system,
● Fan drive reversing function,
● Stairs on the left side of cab,
● Safety access and railing on both sides of the slewing platform,
● Windscreen cleaning system,
● Dry powder fire extinguisher,
● LED lights.
The following optional systems can be selected individually or in combination as required:
○ Hydraulic lifting cab,
○ Air suspension seat,
○ Automatic central lubrication system,
○ Grab with 360° rotation,
○ Magnetic plate control system,
○ Hose rupture valves for boom cylinder,
○ Hose rupture valves for stick cylinder,
○ Four view camera system,
○ Low temperature treatment (winter package) and cab heater in cold areas,
○ Automatic fire monitoring and extinguishing system,
○ Automatic weighing system,
○ Spray system,
○ Electric refuelling pump,
○ Safety railing on the boom,
○ Safety railing with height of 1100mm on uppercarriage,
○ Double stairs on both sides of the slewing platform (+safety cage),
○ Custom colors, etc.
According to the operation needs to choose a variety of attachments:
● Orange peel grab,
● Clamshell grab,
● Timber grab,
● Sorting grab,
● Magnetic plate,
● Load hook, etc.
SPECIFICATIONS
|
No. |
Item |
Unit |
Data |
|
|
1 |
Machine weight |
t |
15 |
|
|
2 |
Electromotor |
Power |
kW |
75 |
|
Voltage/frequency |
380V/50Hz |
|||
|
Speed |
r/min |
1485 |
||
|
3 |
Hydraulic system |
Max. flow rate |
L/min |
2×166 |
|
Max. operating pressure |
MPa |
32 |
||
|
Control type |
Hyd. pilot control |
|||
|
Hydraulic oil tank capacity |
L |
228 |
||
|
4 |
Slewing system |
Max. slewing speed |
r/min |
14.8 |
|
Tail slewing radius |
mm |
2622 (Walking access not include) |
||
|
5 |
Working data |
Boom length |
mm |
6200 |
|
Stick length |
mm |
4200 |
||
|
Orange peel grab capacity |
m3 |
0.6 (semi-closed, 5-tine) |
||
|
Steel pylon height |
mm |
1500 |
||
|
Max. grabbing reach |
mm |
11353 |
||
|
Max. grabbing height |
mm |
9422 |
||
|
Max. grabbing depth |
mm |
4088 |
||
※
1. The products may be improved, if you need detailed, latest and accurate data, please contact the manufacturer or Dealer.
2. For fixed electric material handler, customized working equipments and steel pylon height are available based on site situation.
