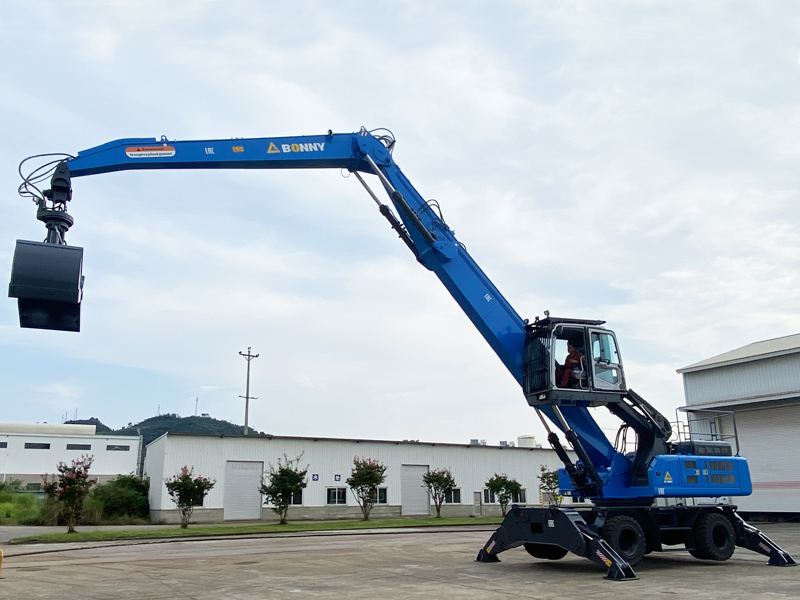

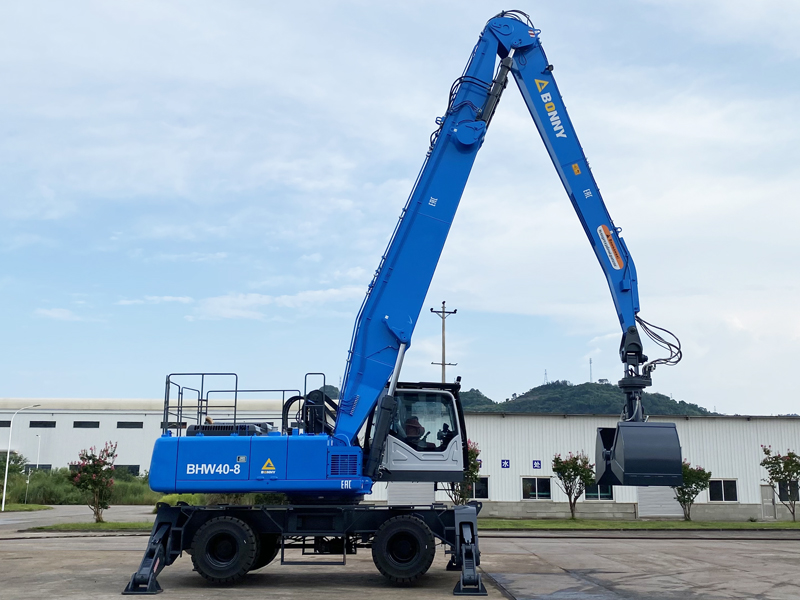

FEATURES
The following systems are standard configuration in wheel hydraulic material handler:
● Hydraulic lifting cab,
● Wheel steering,
● Automatic air conditioning system,
● 10’ multi-function touch display,
● Grab with 360° rotation,
● Boom cylinder damping device,
● Fan drive reversing function,
● Windscreen cleaning system,
● Dry powder fire extinguisher,
● Operating alarm with flashing amber beacon,
● Reverse horn,
● LED lights.
The following optional systems can be selected individually or in combination as required:
○ Joystick steering,
○ Air suspension seat,
○ 13/16 kW hydraulic electromagnetic generator with control system (mainly depends on the magnetic plate),
○ Automatic central lubrication system,
○ Hose rupture valves for boom cylinder,
○ Hose rupture valves for stick cylinder,
○ Filter system for attachments,
○ Four view camera system,
○ Low temperature treatment (winter package) and cab heater in cold areas,
○ Separate cooling system for engine and hydraulic oil cooler in high temperature areas,
○ Float position of the equipment,
○ Overload warning device and dangerous area limitation,
○ Automatic fire monitoring and extinguishing system,
○ Remote monitoring system,
○ Automatic weighing system,
○ Spray system,
○ Electric refuelling pump,
○ Safety railing with height of 1100mm on uppercarriage,
○ Trailer hook, etc.
According to the operation needs to choose a variety of attachments:
● Orange peel grab,
● Clamshell grab,

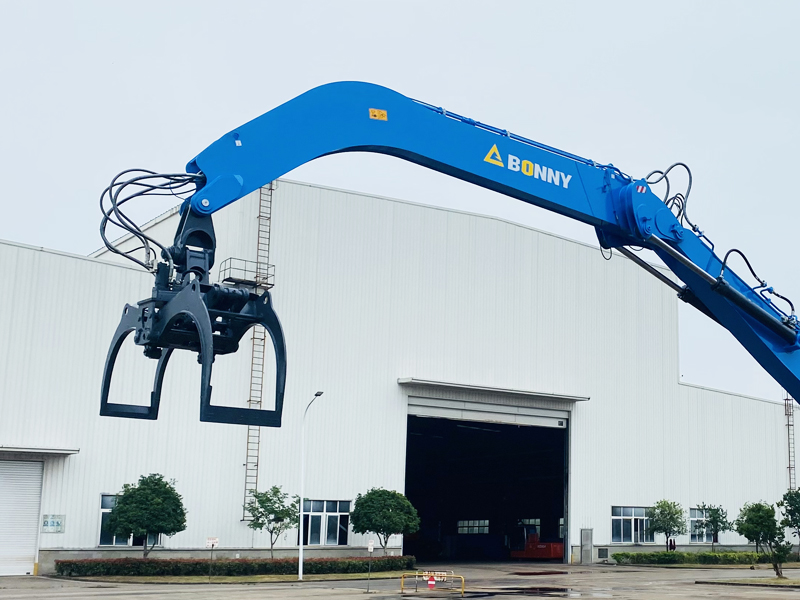

● Timber grab,
● Sorting grab,
● Magnetic plate,
● Hydraulic shears,
● Load hook, etc.
SPECIFICATIONS
|
No. |
Item |
Unit |
Data |
|
|
1 |
Machine weight |
t |
40 |
|
|
2 |
Diesel engine |
Model |
QSB7-C227 |
|
|
Rated power/speed |
kW/rpm |
169/2050 |
||
|
Fuel tank capacity |
L |
425 |
||
|
3 |
Hydraulic system |
Max. flow rate |
L/min |
2×280 |
|
Max. operating pressure |
MPa |
32 |
||
|
Hydraulic oil tank capacity |
L |
325 |
||
|
4 |
Slewing system |
Max. slewing speed |
r/min |
8.5 |
|
5 |
Travel system |
Max. travel speed at 1st gear |
km/h |
5.0 |
|
Max. travel speed at 2nd gear |
km/h |
19.0 |
||
|
Gradeability |
32% |
|||
|
6 |
Working data |
Boom length |
mm |
9600 |
|
Stick length |
mm |
7300 |
||
|
Orange peel grab capacity |
m3 |
0.6 (semi-closed, 5-tine with 360° rotation) |
||
|
Max. grabbing reach |
mm |
17458 |
||
|
Max. grabbing height |
mm |
15716 |
||
|
Max. grabbing depth |
mm |
7460 |
||
